Zebra ID Card Printer P330i

General Specifications

High speed printing 144 cards/hour for color, single side (YMCKO) 900 cards/hour for resin black (K) 16MB image memory standard Windows 2000 and XP drivers One year printer warranty One year (unlimited passes) printhead warranty*

Color Printing

Color dye sublimation or monochrome thermal transfer printing 25 seconds per card full color single sided (YMCKO) 300 dpi (11.8 dots/mm) print resolution

Bar Codes

Code 39 Code 128 B & C with & without check digit 2 of 5 & 2 of 5 Interleaved UPC-A EAN 8 & EAN 13 PDF-417 2D bar code and other symbologies can be printed via Windows drivers.

Fonts

True Type fonts via Windowsâ„¢ drivers.

Card Specifications

Types: PVC, Composite Card width/length: ISO CR-80 - ISO 7810, 2.12" (54mm) X 3.385" (86mm) Magnetic Stripe - ISO 7811 Smart Card - ISO 7816-2 Card thickness: 10 mil (.25mm) to 60 mil (1.524mm) Card feeder capacity: 100 cards (30 mil) Card output hopper capacity: 100 cards (30mil) Optional card feeder capacity: 220 cards (30mil)

Ribbon Specifications

i Series Printers require the use of i Series ribbons for full color printing Monochrome: 1500 and 1000 cards/roll K Resin + O: 500 cards/roll YMCK: 400 cards/roll YMCKO: 200 & 330 cards/roll 1/2 panel YMCKO: 450 cards/roll Overlay varnishes (clear and hologram): 350 cards/roll

Communications Interface

USB (usb cable included) Optional Built-in Ethernet

Mechanical

Height: 10.1" (256mm) Depth: 9.4" (239mm) Width: 18.2" (462mm) Weight: 15.5 lbs (7.0kg)

Electrical

110 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching) FCC Class B, CE, UL and CUL approved

Environmental

Quiet for offices! Operating Temperature: 60°F to 86°F (15°C to 30°C) Operating humidity: 20% to 65% non condensing Storage temperature: 23°F to 158°F (-5°C to 70°C) Storage Humidity: 20% to 70% non-condensing Ventilation: Free air

Options

Smart card contact station (30 mil cards only) Built-in Ethernet Contactless encoding (MIFARE and HID iClass) High capacity feeder (220 cards) Magnetic encoder (20-40 mil cards only) Extended warranty program Hot Swap warranty program (USA only) Cleaning supplies Service manual *With output hopper in stowed position

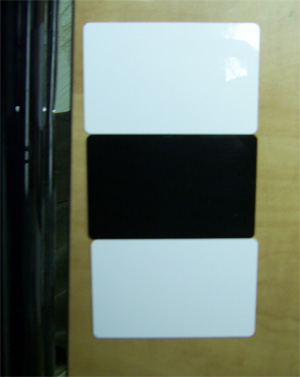

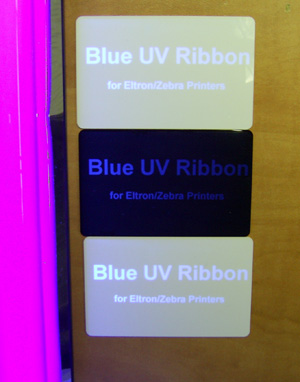

NEW - EXECLUSIVE Natural light Output 1000 Cards NEW - EXECLUSIVE UV light turned on Output 1000 Cards
