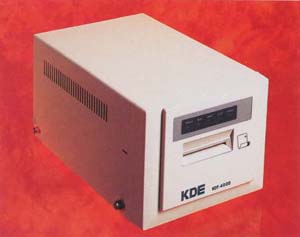

KDT-4000 Motorized Insertion Magstripe Reader/Writer

List Price $2,800



Model

Dimensions (mm)

ISO Tracks

 ĦĦ Interface
ĦĦ

W

L

H

Single

Double

Triple

IC

 ĦĦ
KDT-4300 160 245 133

R/W

R/W

R/W

 ĦĦ

RS-232
KDT-4800 160 245 133

R/W

R/W

R/W

R/W

RS-232

This motorized insertion reader/writer has a built-in power supply(AC110~240V) and an RS232C interface. An option providing simultaneous access to the magnetic stripe and IC card according to ISO standard is also available.

· Magnetic reading/writing up to three tracks.
. High Co magnetic version up to 4,000Oe is an available option.
. Optional IC contact module (8pins or 16pins).
. Convertible cover to help the removal of a jammed card.
. High-Co/Low-Co card switchable encoding version is available.
· Windows software included.

Head Life : Minimum of 700K passes.

Card Dispenser

KCD-1000 Series
· Designed for robust structure to meet industrial standards
· Designed against overlapped cards dispensing
· LED display for card empty indication
· Stacking capability : 0.76 mm X 100 pcs
· Windows 95/NT Test Program (RS-232c Version)



Available Options
· Error Card Capture Module
· RS-232C Interface
· Extension Hopper : 300/500pcs
· Remaining Card Indication: Hopper Type: 10 ~ 50pcs(Adjustable)  Cassette Type: 20pcs
Model Numbers
  Hopper Type Cassette Type
A: Standard KCD-1100 KCD-1200
B: A+Capture Model KCD-1300 KCD-1400
C: B+RS-232C Interface KCD-1500
