MINI123X
Portable Magstripe Reader




Retail Price: $899


512K - Reads all 3 Tracks

Compatible with Exeba-COMM Windows software / cable included



Magnetic Stripe Read / Write Software

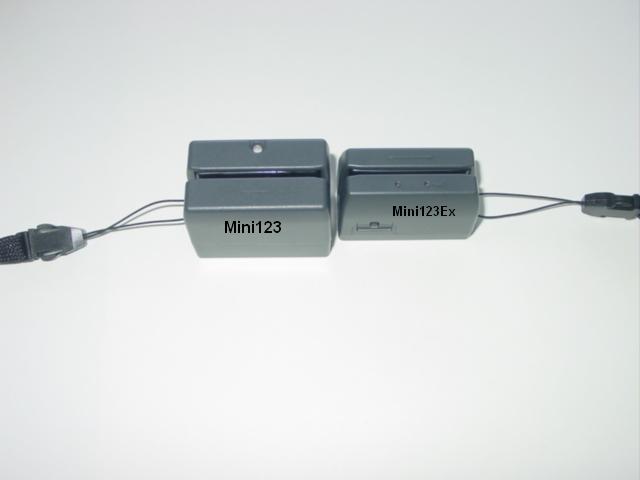

Mini123Ex is the Smallest Portable Data Collector in the world. It's a battery-powered portable magnetic swipe reader, which is specially designed for magnetic stripe data collection anytime and anywhere without computer.
Large memory can collect 3000 data. Built-in Time clock indicates every transaction date and time. Data is read from the card and kept into the memory then downloaded to the computer.
Specifications


· 512 K bytes memory for storing 3000 data
· 3-track version can collect all three tracks data
· Time stamp shows date and time with every transaction
· Password Protection defends user
· Auto Power Off is set by user
· Transfer data to MSR206 / MSR505C directly
· Data downloadable to the computer via USB
· Bi - Directional
· Battery powered and low battery indicated
· Read ISO format and special format are available upon request
· No programming required, easy to use as 1- 2- 3

Applications
· Any movable data collection (Trade shows, Racing events)
· Point of sales (Credit card data collection)
· Attendance (Student ID, Membership card)
· Law enforcement (DMV card)

Specifications ISO Standard Track 1 210 bpi,
79 Alphanumeric Characters Track 2 75 bpi,
40 Numeric characters Track 3 210 bpi,
107 Numeric characters
Electrical Memory size 512K stores up to 3000 records
Time stamp Date: YY/MM/DD ( 2007/03/15 => Mar. 15, 2007 ) Time: HH:MM:SS (19:08:35 => 7:08:35pm) Week: Sun.=>1, Mon.=>2, Tue.=>3 Wed.=>4, Thurs.=>5, Fri.=>6, Sat.=>7 Example: 2002/04/12 19:08:35 6 => April 12, 2002, 7:08:35pm, Friday
Interface RS-232, Half-Duplex. 8N1, 9600 bps Speed Card speed through the unit may vary from 3 ~50 ips
Battery Power 3.7v 220 mAH Rechargeable Battery
Environment Working Temp 0~55 Deg. C Storage Temp -10~55 Deg C Humidity 10~90% Relative Physical Dimensions L 1.6 x W 0.8 x H 1.2 inch ( L 4.7 x W 2.2 x H 3.1 cm ) Net Weight 1.2 oz
